Planar Lightwave Circuit PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8

Planar Lightwave Circuit PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8
Planar Lightwave Circuit PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8 Planar Lightwave Circuit PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8

বড় ইমেজ :  Planar Lightwave Circuit PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8

পণ্যের বিবরণ:

Place of Origin: Guangdong, China
পরিচিতিমুলক নাম: KCO, Kocent Optec Limited
সাক্ষ্যদান: ISO9001, RoHS
Model Number: PLC-LGX-1x8-FCA

প্রদান:

Minimum Order Quantity: Negotiation
মূল্য: Negotiation
Packaging Details: Carton box, wooden pallet
Delivery Time: 5~8 days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 set/ month
বিস্তারিত পণ্যের বর্ণনা
PDL: <0.2dB IL: 10.8dB
Fiber type: single mode G657A1 Adapter: SC/UPC, FC/APC
Directivity: 55dB RL: >55dB
লক্ষণীয় করা:

Planar Lightwave Circuit Splitter

,

PLC Optical Splitter

Planar Lightwave Circuit PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8



Fiber optic PLC Spltiter quick informations:

- Type: LGX cassttle module

- Port Configuration: 1x8, 1*8

- Connector: SC/UPC, FC/APC

- Adapter: SC/UPC, FC/APC
- Cable length: 1.0m
- Cable Diameter: 0.9mm
- Label: customized



Fiber optic PLC Splitter Applications:

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.



Fiber optic PLC Splitter Features:

- Low insertion loss.

- Low Polarization Dependent Loss.

- Excellent Environmental Stability.

- Excellent Mechanical Stability.

- Meet Telcordia GR-1221 and GR-1209.



Fiber optic PLC Splitter Descriptions:

Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.



The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.

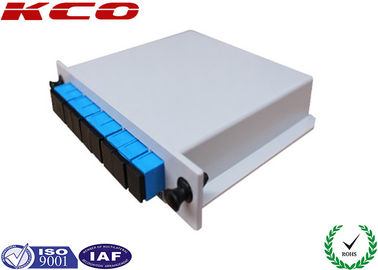

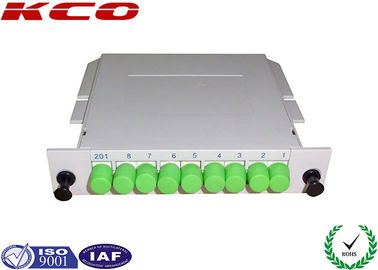

Fiber optic PLC Splitter Product picture:

Planar Lightwave Circuit PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8 0



Fiber optic PLC Splitter Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
