Light Weight 1xN MPO MTP Patch Cord With 3U 19 Inch Patch Panel Rack Mount

Place of Origin Guangdong, China
পরিচিতিমুলক নাম KCO
সাক্ষ্যদান RoHS, ISO9001
Model Number MPO-RM-Cassette-LCU
Minimum Order Quantity Negotiation
মূল্য Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

Wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

যদি আপনার কোন উদ্বেগ থাকে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
Connector 1 MPO, MTP Size 480x245x3U
Capacity 168 cores Color black, beige or customized
IL 0.2dB RL 55dB
লক্ষণীয় করা

qsfp breakout cable

,

fiber optic breakout cable

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

1xN MTP MPO Fiber Breakout Cable with 3U 19 Inch Patch Panel Rack Mount





Features:
- Integrate fiber patch panel with easy plug and play fiber cassette module for optimizing cabling management efficiency
- Light weight, easy to install
- Easy for installation and operation .
- Available for the installation of FC/SC/ST/LC adaptor.

- Mount to standard EIA 19'' rack rails
- Provides a complete system solution for connectivity
- Provide higher patch field density in fewer rack units saving valuable space
- Assures flexibility and ease of network deployment and moves, adds, and changes



Descriptions:

Typical MPO MTP fiber optic rack mount patch panel is with 3U 19’ standard size use for MTP MPO fiber breackout cable cassettle, inside the patch panel, it can be splice trays with 1xN MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel, the 2U MPO fiber patch panel can be with max 192 cores output optical strand, the output connectors can be SC/FC/ST/LC.



Quick informations:

- Connector 1: MPO, MTP truck cable

- Connector 2: LC, FC, ST, SC or customized 4 to 24 strands cable

- Cable length: 0.5m, 1.0m, 1.5m or customized

- Patch panel size: 480x245x3U(mm)

- Capacity: 24 cores, 48 cores, 96 cores, 288 cores

- Maximum upload with 12 pcs of 24 cores cassettes

- Adapter type: LC, SC, ST, FC or customized





Product picutures:

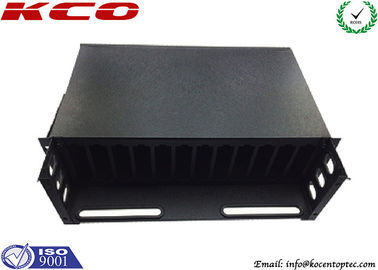

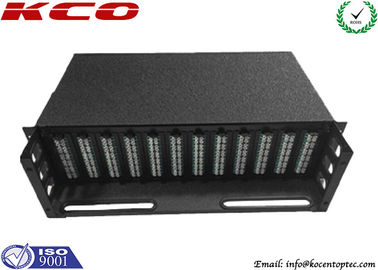

Light Weight 1xN MPO MTP Patch Cord With 3U 19 Inch Patch Panel Rack Mount 0



MTP/MPO Connector Specifications:

Type Single Mode Single Mode Multi Mode
  (APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard
  Low Loss   Low Loss   Low Loss
  ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times<0.5 dB
Interchange <0.5 dB
Anti-tensile force 15kgf



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
