12 24 MPO Optical Connector / MPO Fiber Optic Connector Single Mode Types

Place of Origin Guangdong, China
পরিচিতিমুলক নাম KCO
সাক্ষ্যদান ISO9001, RoHS
Model Number MPO, MPO/APC
Minimum Order Quantity Negotiation
মূল্য Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.

হোয়াটসঅ্যাপ:0086 18588475571

Wechat: 0086 18588475571

স্কাইপ: sales10@aixton.com

যদি আপনার কোন উদ্বেগ থাকে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
Type MPO-MPO Color Green, blue, beige, aqua
Insertion loss 0.2dB Return loss 55dB
Pull strength 98N Mode single mode, multimode, mono mode
লক্ষণীয় করা

qsfp breakout cable

,

breakout fiber optic cable

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

12 24 MPO Optical Connector / MPO Fiber Optic Connector Single Mode Types





MPO fiber optic adapter Descriptions:

MPO fiber optic connector is one of the typical type of fiber connectors that mainly installed under factory conditions using specialized processes. It is built on the MT-style ferrule, designed by NTT. The MT (mechanical transfer) ferrule is designed to hold up to 12 fibers in a ferrule 7mm wide and is ideally suitable for ribbon fiber connections. In addition, precision-machined guide pins maintain the close alignment necessary for connecting 12 fibers at once. These guide pins can be arranged as necessary between the mating connectors depending on the way they will be used. Connectors designed for multiple fibers are also known as array connectors.

The MPO connectors has a plastic body that is spring-loaded to keep the connectors together.

MPO connector realizes high density interconnection by MT ferrule with fiber ribbon.



Features:

- Precision molded MT ferrule

- High precision guide pins for exact alignment

- Compact design, up to 24 fiber ribbons

- Meet IEC 61754-7 Compliant

- High density interconnection

- Materials meet RoHS requirements



Applications:

- Parallel optical interconnect between PC cards and patch panels

- Interconnection for OE modules

- Optical Switch inter-frame connections

- Gigabit Ethernet

- CATV

- Video

- Active Device / Transceiver Interface

- Premise Installations

- Telecommunication Networks

- Multimedia



Product picutures:

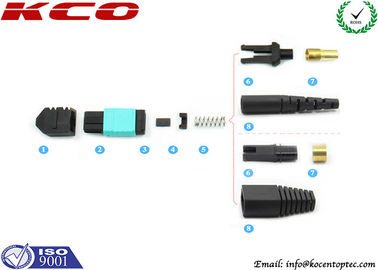

12 24 MPO Optical Connector / MPO Fiber Optic Connector Single Mode Types 0

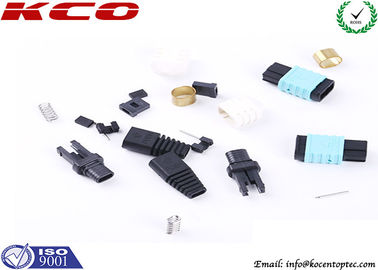

12 24 MPO Optical Connector / MPO Fiber Optic Connector Single Mode Types 1



MPO fiber optic connector Specifications:

Item MPO Connector (4F, 8F, 12F, 24F)
Mode Single mode Multi mode
Durability (500 matings) <0.3dB
Core Diameter 9/125um 50/125um & 62.5/125um
Insertion Loss (Typical)

Standard loss ≦0.25dB

Low Loss ≦0.1dB

Standard loss ≦0.2dB

Low Loss ≦0.1dB

Insertion Loss (Maximum)

Standard loss ≦0.75dB

Low Loss ≦0.35dB

Standard loss ≦0.6dB

Low Loss ≦0.35dB

Return Loss PC ≧35dB, APC≧55dB --
Operating Temp. (℃) -40℃ ~ +75℃
Storage Temp. (℃) -40℃ ~ +85℃

Notes:

* 24F SM standard loss IL typical ≦0.5dB, maximum ≦1dB

* Not available in low loss 24F SM & MM

* Performance is polish dependent



Our Fiber Optic Connectors packing ways:

12 24 MPO Optical Connector / MPO Fiber Optic Connector Single Mode Types 2



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
